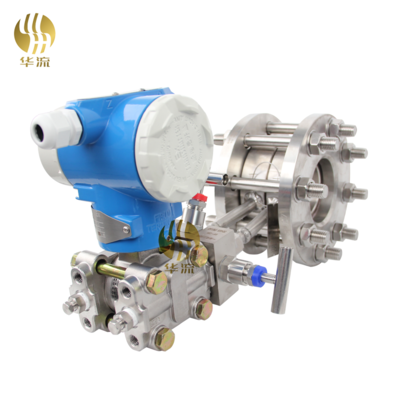

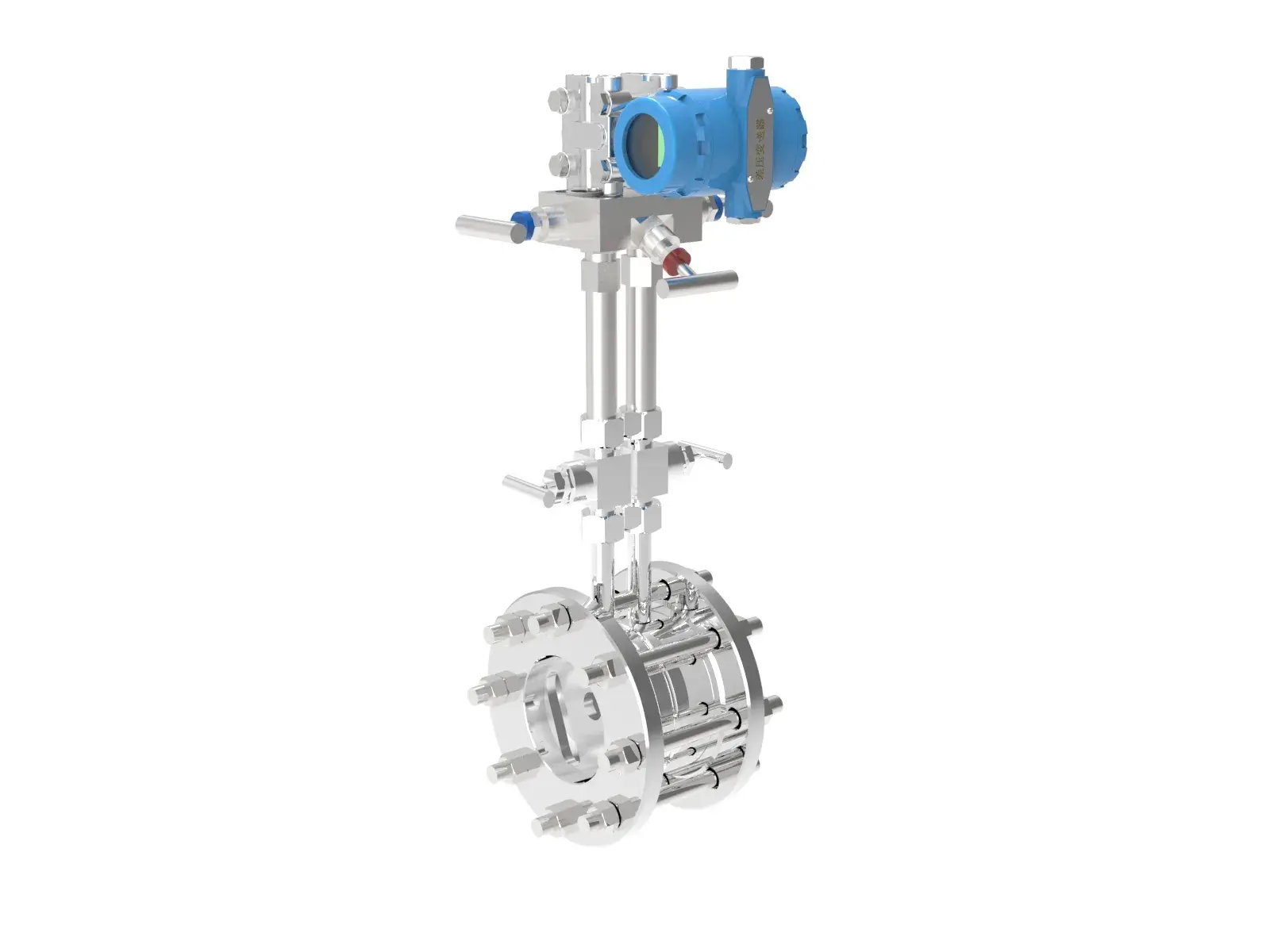

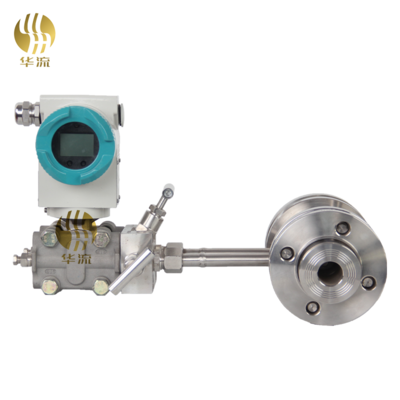

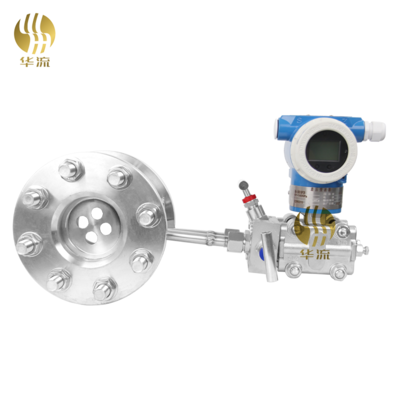

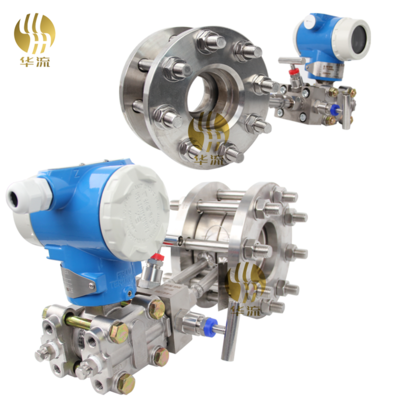

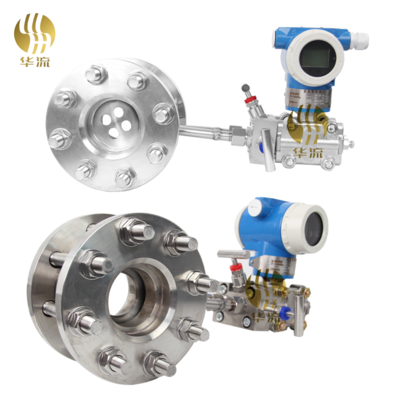

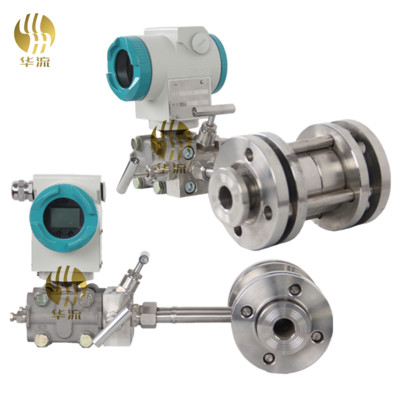

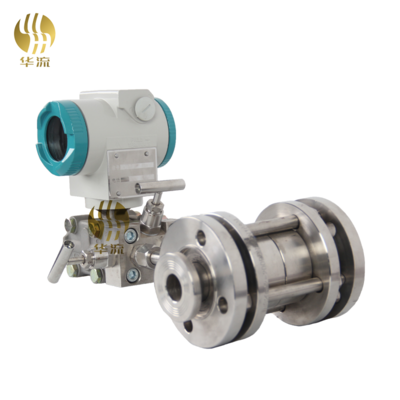

ORIFICE PLATE FLOW METER

Short Description:

Orifice plate flow meters, standard nozzles, long diameter nozzles, classical Venturi tubes, wedge flow meters, V-cone flow meters, balance flow meters, bend flow meters, and flow limiting orifice plates are commonly used flow measurement devices for automated measurement and control.It is a flow meter used in conjunction with a flow sensor and differential pressure transmitter to measure medium flow.
Orifice plate flow meter is the standard throttling device with the most specifications, and it is the simplest and most applicable product among throttling devices.

CONTACT NOW

Details

Advantages

1. High accuracy: Orifice plate flow meters have very high accuracy, reaching a measurement accuracy of ± 0.5%, which makes them very useful in applications that require precise flow measurement.

2. High reliability: Orifice plate flow meters do not contain moving parts, have almost no maintenance costs, and can operate normally in harsh environments. This makes them very suitable for use in situations that require long-term continuous measurement.

3. Wide applicability: Orifice plate flow meters can be used for measuring various media flow rates, such as liquids, gases, and steam, as well as for measuring flow rates of high-temperature and high-pressure fluids. This makes them very popular as they can be used in many industries, such as petrochemicals, metallurgy, water treatment, food processing, etc.

4. The structure is easy to replicate, simple, sturdy, and has stable and reliable performance.

5. Due to the simple external shape of this product, it is easy to make a jacket moisturizing type, which allows steam to pass through the jacket, preventing the measured fluid (such as heavy oil, residual oil, etc.) from condensing or adhering in the measuring pipe section; The use of coolant can prevent the formation of vapor-liquid two-phase flow when easily vaporized liquids flow through the flow measuring plate.

6. The standard throttling component is universal worldwide and has been recognized by international standards organizations. It can be put into use without actual flow calibration and is also unique in flow meters.

7. Low maintenance cost: The orifice plate flow meter has a simple structure, low maintenance cost, and long service life, which can to some extent reduce the operating costs of the enterprise.

Features:

Standard throttling parts are fully usable and approved by the International Standards Organization. No actual flow calibration is required.
It is ready for use and is unique among flow sensors;
The structure is easy to replicate, simple, strong, stable and reliable in performance, and low in price;
Wide range of applications, including all single-phase fluids (liquid, gas, steam), some mixed-phase flows, general production
The pipe diameter and working conditions (temperature, pressure) of the process are all measured;
The detection parts and differential pressure indicating instruments can be produced by different manufacturers, which is convenient for specialized large-scale production;
Can measure the flow of gas, steam, liquid and lead;
Widely used in process control and measurement in the fields of petroleum, chemical industry, metallurgy, electricity, heating, water supply, etc.
Steam and liquid flow measurement. It has simple structure, convenient maintenance and stable performance.
